Product Description

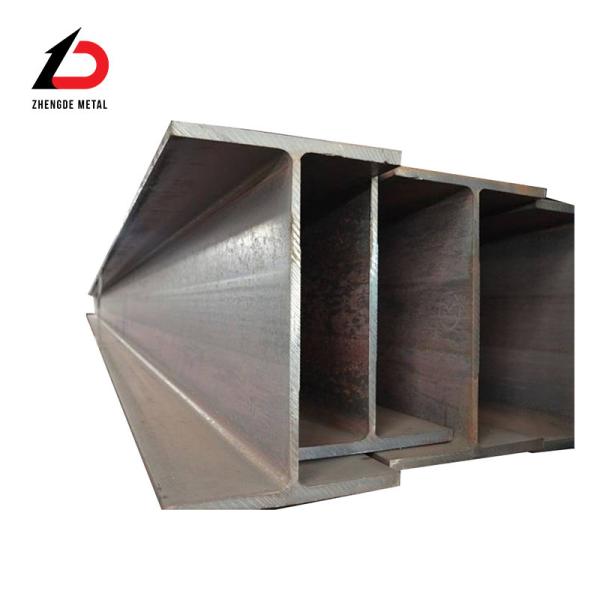

The steel structure mainly made of hot-rolled H-beams has a high
degree of industrial production, which is convenient for mechanical
manufacturing, intensive production, high accuracy, convenient
installation, and easy to ensure quality. It can be built into a
real house manufacturing factory, bridge manufacturing factory,
industrial factory building manufacturing factory, etc. The
development of steel structures has created and driven the
development of hundreds of emerging industries.
| IPE |
| Specification: BS EN 10025-2:2004 Dimension: Euronorm 19-57 Tolerance: BS EN 10034:1993 |
| Designation | h | b | s | t | Area | Ix | Iy | ix | iy | Zx | Zy |
| Ttype | mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 |
| AA100 | 100x55x6.7 | 97.6 | 55.0 | 3.6 | 4.5 | 8.56 | 136 | 12.6 | 3.98 | 1.21 | 27.9 | 4.57 |
| AA120 | 120x64x8.4 | 117.0 | 64.0 | 3.8 | 4.8 | 10.7 | 244 | 21.1 | 4.79 | 1.41 | 41.7 | 6.59 |
| AA140 | 140x73x10.1 | 136.6 | 73.0 | 3.8 | 5.2 | 12.8 | 407 | 33.8 | 5.64 | 1.63 | 59.7 | 9.27 |
| AA160 | 160x82x12.1 | 156.4 | 82.0 | 4.0 | 5.6 | 15.4 | 646 | 51.6 | 6.47 | 1.83 | 82.6 | 12.6 |
| AA180 | 180x91x14.9 | 176.4 | 91.0 | 4.3 | 6.2 | 19.0 | 1,020 | 78.1 | 7.32 | 2.03 | 116 | 17.2 |
| AA200 | 200x100x18.0 | 196.4 | 100.0 | 4.5 | 6.7 | 22.9 | 1,533 | 112 | 8.19 | 2.21 | 156 | 22.4 |
| Japanese I-sections (Tapered Flange) |
| Specification: BS EN 10025-2:2004 Dimension: JIS G3192:2008 Tolerance: JIS G3912:2008 |
| Designation | h | b | s | t | Area | Ix | Iy | ix | iy | Zx | Zy |
| mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 |
| 150x75x17.1 | 150 | 75 | 5.5 | 9.5 | 21.83 | 819 | 57.5 | 6.12 | 1.62 | 109 | 15.3 |
| 200x100x26.0 | 200 | 100 | 7 | 10 | 33.06 | 2,170 | 138 | 8.11 | 2.05 | 217 | 27.7 |
| Japanese H-sections |
| Specification: BS EN 10025-2:2004 Dimension: JIS G3192:2008 Tolerance: JIS G3912:2008 |
| Designation | h | b | s | t | Area | Ix | Iy | ix | iy | Zx | Zy |
| mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 |
| 100x100x16.9 | 100 | 100 | 6 | 8 | 21.59 | 378 | 134 | 4.18 | 2.49 | 75.6 | 26.7 |
| 125x125x23.6 | 125 | 125 | 6.5 | 9 | 30.00 | 839 | 293 | 5.29 | 3.13 | 134 | 46.9 |
| 150x75x14.0 | 150 | 75 | 5 | 7 | 17.85 | 666 | 49.5 | 6.11 | 1.66 | 88.8 | 13.2 |
| 175x90x18.0 | 175 | 90 | 5 | 8 | 22.90 | 1,210 | 97.5 | 7.26 | 2.06 | 138 | 21.7 |
| 200x100x17.8 | 198 | 99 | 4.5 | 7 | 22.69 | 1,540 | 113 | 8.25 | 2.24 | 156 | 22.9 |
| 200x100x20.9 | 200 | 100 | 5.5 | 8 | 26.67 | 1,810 | 134 | 8.23 | 2.24 | 181 | 26.7 |
| 250x125x25.1 | 248 | 124 | 5 | 8 | 31.99 | 3,450 | 255 | 10.4 | 2.82 | 278 | 41.1 |
| 250x125x29.0 | 250 | 125 | 6 | 9 | 36.97 | 3,960 | 294 | 10.4 | 2.82 | 317 | 47.0 |
Our Advantages
High Strength
The H-beam produced by Zhengde Metal has high structural strength
and light weight; the design style is flexible and rich;
The project construction is fast, the floor area is small, and it
is suitable for all-weather construction. It is convenient for
machining, structural connection and installation, and easy to
dismantle and reuse.
Adequate inventory
The steel structure mainly consists of hot-rolled H-shaped steel,
with good plasticity and toughness, and high structural stability
Strong ability to resist natural disasters, especially suitable for
building structures in earthquake-prone areas;
Compared with the concrete structure, it can increase the use area
of the structure; compared with the welded H-shaped steel, it can
obviously save labor and materials, low residual stress, and good
appearance and surface quality.
Attention to detail
The advantages of H-beam produced by Zhengde Metal:
Full range of steel types: carbon structural steel, low-alloy
structural steel, structural steel for hull, weather-resistant
structural steel
Good technology: automatic continuous rolling, laser cutting,
precise straightening
Large output: 8 production lines with a daily output of 1600 tons
Applicable scene
H-shaped steel is mainly used for beam and column members in
industrial and civil structures. for example
1. Steel structure load-bearing brackets of industrial structures
2. Steel piles and supporting structures for underground
engineering
3. Industrial equipment structure such as petrochemical industry
and electric power
4. Long-span steel bridge components
5. Ship and machinery manufacturing frame structure
6. Girder brackets for trains, automobiles, and tractors
7. Port conveyor belt, high-speed baffle support
Quality first: production and inspection in strict accordance with
production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere
service can last for a long time.Detailed Photos
Packaging & Shipping
Company Profile
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel
coils, cold-rolled steel coils, galvanized steel coils,
color-coated steel coils, section steel, steel pipes, steel wires,
metal mesh, stainless steel, aluminum, copper and other metal
products integrated large enterprises. Five production and sales
bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan
and Tai'an, with more than 100 production lines, 4 nationally
recognized laboratories, 2 technical engineering centers, and 5
enterprise technology centers. Products are exported to more than
50 countries and regions such as North America, South America,
Europe, Africa, Oceania, Middle East, and Southeast Asia.
Certifications
